UHP Tube and Fittings

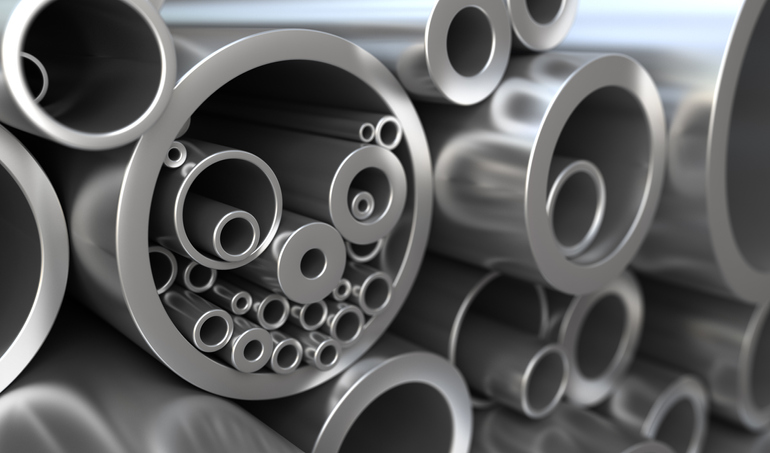

 Ultra-High Purity Tubing & Fittings

Holy Instruments manufactures premium ultra-high Purity tubing and fittings engineered for the most demanding liquid and gas distribution systems in the semiconductor, pharmaceutical, biotech, and other high-purity industries.

Available Materials & Sizes

• Materials: Stainless Steel 316/L, Hastelloy® C-22
• Sizes: 1/8” – 4”
• Surface Finish: ID electropolished to 10uin Ra max

Quality & Standards

Every Holy Instruments product is manufactured to meet or exceed the latest SEMI standards and international specifications, including:

• ASTM: A213, A249, A269, A270, A479
• ASTM: A262, A632, A450
• SEMI: F60, F72, F73 testing methods
• ASME: SA213, SA249
• ANSI/ASME: B46.1

This ensures unmatched precision, cleanliness, and reliability in high-purity applications.

Material Integrity

• Produced from 316L stainless steel with controlled sulfur content for optimal corrosion resistance and weldability
• Seamless and welded options available, traceable to mill test reports
• Marked with manufacturer ID, size, alloy, and heat number for full traceability

Surface Finish

• ID: Electropolished to 10uin Ra max for ultra-clean flow paths
• OD: Bright annealed or mechanically polished (≤32uin Ra), per customer specification

Cleaning & Packaging

• No mercury or ozone-depleting chemicals used
• Nitric passivated and DI water flushed (18 MΩ-cm, 140°F / 60°C)
• Final drying with filtered UHP-grade nitrogen
• Packaged in an ISO Class 100 cleanroom, double-bagged or sleeved with 4–6 mil polyethylene, ends capped for protection

Testing & Certification

• Dimensional inspection using calipers, micrometers, and precision instruments
• Advanced testing available: SEM, XPS, AES
• Supplied with Material Test Reports (MTRs) and Certificates of Conformance (CoCs) for every shipment. SEM, ESCA, AUGER upon request.

​
